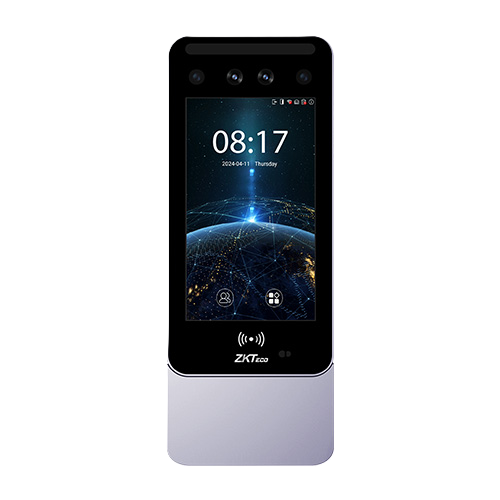

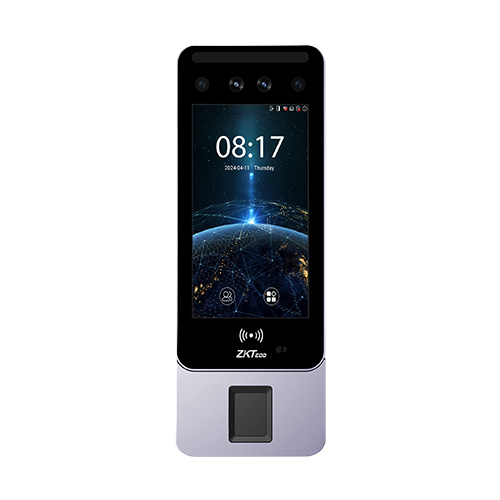

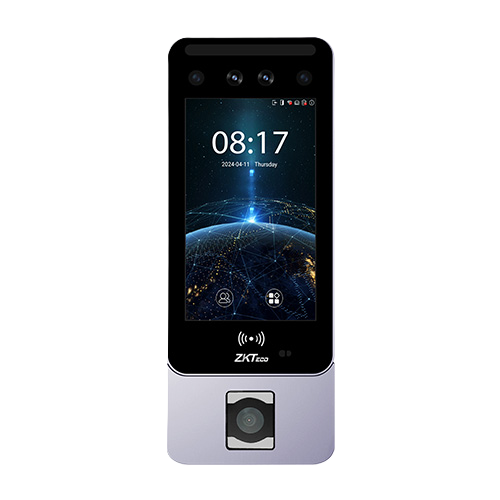

Horus E2
The Horus E2 from ZKTeco is an Android-based multi-biometrics terminal designed to streamline both time attendance and access control. Leveraging ZKTeco's cutting-edge technology, the Horus E2 supports a variety of authentication methods, including facial authentication, fingerprint scanning, multi-tech card authentication, and QR code scanning. These features meet the diverse needs of users across various environments. The device ensures reliable connectivity through dual-frequency Wi-Fi and 4G LTE, facilitating seamless network integration. The Horus E2 is compatible with Android 10 operating system, which simplifies the integration with third-party applications. Additionally, it includes an optional removable backup battery, enhancing its reliability and making it an ideal solution for temporary site management
Horus E2 Series – Advanced Biometric & Access Control Terminals
1. Key Features
🟢 Multiple Model Options – Horus E2, Horus E2-FP, Horus E2-B, Horus E2-QR to suit different business needs.
🟢 5” TFT Color Touch LCD – High-resolution 720×1280 screen for intuitive navigation.
🟢 Dual 2MP Camera – Accurate facial recognition under visible light.
🟢 Multi-Modal Authentication – Face, Card, Password (Virtual Keypad), Fingerprint (Optional), QR Code (Optional).
🟢 Large Capacity – Up to 50,000 users and 200,000 transaction records.
🟢 Fast Verification – Facial recognition <1 sec, fingerprint <0.5 sec (FP model).
🟢 Flexible Connectivity – TCP/IP, Wi-Fi, Bluetooth BLE 4.1, 4G, RS485, Wiegand, and Aux I/O.
🟢 Durable & Wall-Mount Ready – Compact design compatible with Asian Gang Box / Single Gang Box.
2. Technical Specifications
Display:
🟢 5” TFT Color Touch LCD (720×1280)
Camera:
🟢 Dual Camera @ 2MP
Operating System:
🟢 Android 10.0
Hardware:
🟢 CPU: Octa-Core @ 2.0GHz
🟢 RAM: 2GB / ROM: 16GB
🟢 Speaker: 7Ω @ 1.14W, Omni-directional, SNR: 60dB
🟢 Supplement Light: Yes
Authentication Methods:
🟢 Face / Card / Password / Fingerprint (Optional) / QR Code (Optional)
3. Biometric Capacity & Performance
| Model | Fingerprint | Face | Card | User | Transaction | Auth Speed | FAR | FRR | Touchless Distance |
|---|---|---|---|---|---|---|---|---|---|
| Horus E2 | N/A | 20,000 | 50,000 | 50,000 | 200,000 | <1s (Face) | ≤0.01% (Face) | ≤0.02% (Face) | 30–100cm (Face) |
| Horus E2-FP | 30,000 | 20,000 | 50,000 | 50,000 | 200,000 | <0.5s (FP) / <1s (Face) | ≤0.0001% (FP) / ≤0.01% (Face) | ≤0.01% (FP) / ≤0.02% (Face) | 30–100cm (Face) |
| Horus E2-B | N/A | 20,000 | 50,000 | 50,000 | 200,000 | <1s (Face) | ≤0.01% (Face) | ≤0.02% (Face) | 30–100cm (Face) |
| Horus E2-QR | N/A | 20,000 | 50,000 | 50,000 | 200,000 | <1s (Face) | ≤0.01% (Face) | ≤0.02% (Face) | 30–100cm (Face) |
Biometric Algorithm:
🟢 ZKFace VX5622 (Face), ZKFinger VX10.0 (Fingerprint, FP model)
Card Support:
🟢 ID Card 125 kHz & IC Card 13.56 MHz (Standard)
QR Code:
🟢 Supported on Horus E2-QR via ZKBio Zexus Mobile App & PDF417 scanning
4. Communication & Connectivity
🟢 TCP/IP, Wi-Fi (2.4 / 5 GHz), Bluetooth BLE 4.1
🟢 Wiegand In/Out, RS485, Aux Input, Electric Lock, Door Sensor, Exit Button, Alarm Output
🟢 4G, GSM, WCDMA, TDSCDMA, LTE, TDD Mobile Communication
5. Standard Functions
🟢 ADMS, Photo Capture, Event Photo Capture
🟢 Holidays & Anti-Passback
🟢 Schedule Bell & Record Query
🟢 Tamper Switch Alarm
🟢 Multiple Authentication Methods
🟢 AC Push & TA Push Protocol Switch
🟢 T9 Keyboard Input
Access Control Interface: RS485 (Card Reader / Biometric Reader)
6. Power & Environmental Conditions
🟢 Power Supply: DC 12V 3A
🟢 Backup Battery: 3,200mAh (Horus E2-B)
🟢 Operating Temperature: -10°C to 45°C
🟢 Operating Humidity: 0% – 80% RH (Non-Condensing)
7. Physical Dimensions & Weight
🟢 Horus E2: 171.6 × 82 × 24.5 mm, Net: 0.39 kg, Gross: 1.0 kg
🟢 Horus E2-FP, E2-B, E2-QR: 216 × 82 × 24.5 mm, Net: 0.46 kg, Gross: 1.06 kg
Installation: Wall-Mount (Asian Gang Box / Single Gang Box Compatible)
8. Supported Software & Certifications
🟢 Software: ZKBio Time / ZKBio CVAccess
🟢 Mobile App: ZKBio Zexus
🟢 Certifications: ISO14001, ISO9001, CE, FCC, RoHS
Why Choose Horus E2 Series?
✅ High-Capacity Biometric Terminal – Handles up to 50,000 users and 200,000 transactions
✅ Multi-Modal Verification – Face, Fingerprint, Card, Password, QR Code
✅ Fast & Accurate Recognition – Low FAR & FRR for reliable access control
✅ Flexible Connectivity & Access Control Integration
✅ Durable Design with Wall-Mount Capability and Backup Battery Option
📌 Upgrade Your Attendance & Access Management with the Horus E2 Series!
