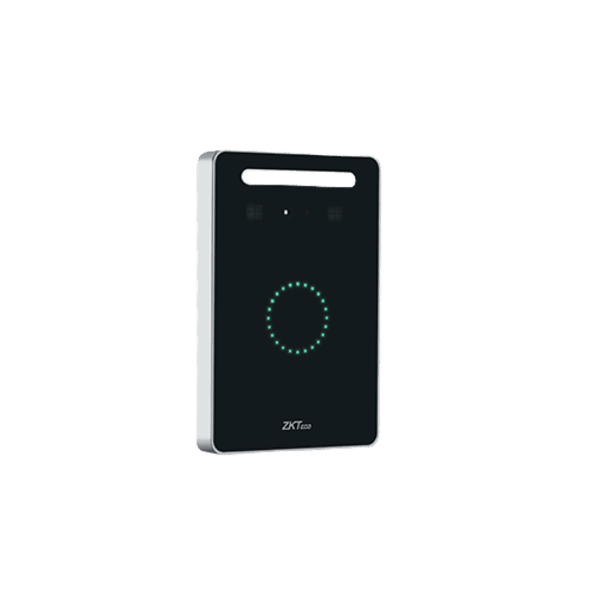

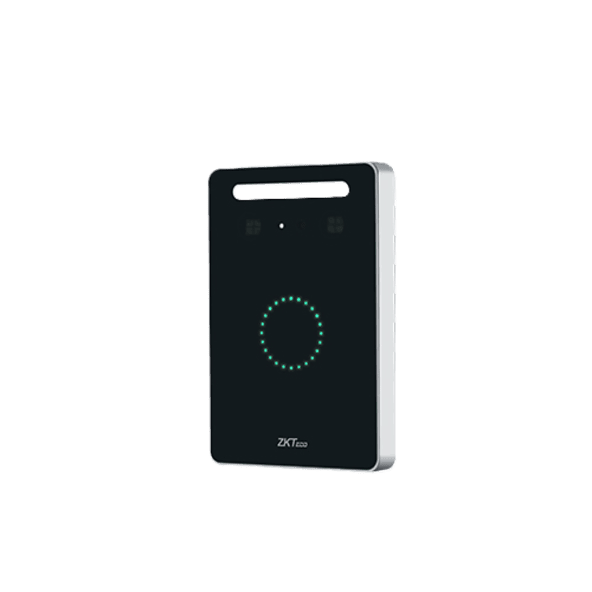

KF1100 Pro
The KF1100 Pro is a sophisticated visible light facial authentication and RFID reader designed to deliver secure and seamless access control. It can function either as a biometric reader or as a standalone access control device, giving you the flexibility to choose the mode that best fits your requirements. When integrated with the inBio Pro Plus controllers, the KF1100 Pro captures and converts face images into compact templates (as small as 512 bytes) and transmits them to the controller via RS-485 for authentication. With its built-in TCP/IP port, it ensures fast data synchronization with controllers, enhancing stability and precision in facial authentication. As a standalone visible light facial authentication device, the KF1100 Pro works with the DM10 door lock extension panel. It is also fully compatible with ZKBio CVSecurity via the ZKTeco A&C PUSH protocol, ensuring smooth system integration and reliable performance.
📌 KF1100 Pro – Facial Recognition Terminal
1. Key Features
🟢 Dual Camera @ 2MP for Accurate Facial Recognition
🟢 Linux OS with 1.2GHz Dual Core CPU, 256MB RAM & 512MB ROM
🟢 Touchless Authentication – Face / Card
🟢 Fast Facial Recognition <0.3s
🟢 Recognition Distance: 30cm – 50cm
🟢 Large Capacity with InBio Pro Plus (Face Reader Mode)
🟢 Flexible Communication – RS-485 (Face Reader Mode), TCP/IP, Optional Wi-Fi
🟢 Compact Aluminium Alloy Housing with Wall-Mount Design (Asian Gang Box Compatible)
2. Technical Specifications
Model Option:
🟢 KF1100 Pro: Face / Card
Capacity (Default Mode with InBio Pro Plus):
🟢 Face Template Capacity: 3,000
🟢 Card Capacity: 100,000
🟢 User Capacity: 100,000
🟢 Transaction Capacity: 500,000
Standalone Mode (with DM10, Optional):
🟢 Face Template Capacity: 1,500 (1:N)
🟢 Card Capacity: 30,000
🟢 User Capacity: 30,000
🟢 Transaction Capacity: 100,000
Display & Interface:
🟢 Screen: N/A
🟢 Camera: Dual Camera @ 2MP
3. Biometric Performance
🟢 Authentication Speed: < 0.3 seconds (Face)
🟢 Recognition Distance: 30cm – 50cm
🟢 Lighting Environment: ≤ 2,000 lux
🟢 FAR: ≤ 0.01%
🟢 FRR: ≤ 0.02%
🟢 Algorithm: ZKLiveFace 3.5 / 4
4. Functions
Standard Functions:
🟢 Face Reader Mode (with InBio Pro Plus)
🟢 A&C Standalone Mode (with DM10)
🟢 Face Template Mode (Default)
Optional Functions:
🟢 IC Card @ 13.56 MHz
🟢 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz
5. Access Control & Communication
🟢 Communication:
• Face Reader Mode – RS-485 *1
• A&C Standalone Mode / Face Template Mode – TCP/IP *1
• Wi-Fi (Optional)
🟢 Access Control Interface: A&C Standalone Mode (with DM10)
6. Power & Environmental Conditions
🟢 Power Supply: DC 12V 3A
🟢 Operating Temperature: -10°C to 50°C
🟢 Operating Humidity: 10% – 90% RH (Non-Condensing)
7. Physical Dimensions & Weight
🟢 Dimensions: 91 × 91 × 13.8 mm (L × W × H)
🟢 Gross Weight: 0.36 kg
🟢 Net Weight: 0.27 kg
🟢 Installation: Wall-Mount (Asian Gang Box Compatible)
🟢 Housing Material: Aluminium Alloy
8. Supported Software & Certifications
🟢 Supported Software: ZKBio CVSecurity
🟢 Certifications: ISO14001, ISO9001, CE, FCC, RoHS
Factory ID: KF1100 Pro – AC01-VL06H-P17
Why Choose KF1100 Pro?
✅ Compact & Stylish Facial Recognition Terminal
✅ Fast & Touchless Authentication with Low FAR/FRR
✅ Large Capacity in Face Reader Mode
✅ Supports Flexible Connectivity & Access Control Integration
✅ Robust Aluminium Alloy Housing
Additional Information:
| Not Available |
