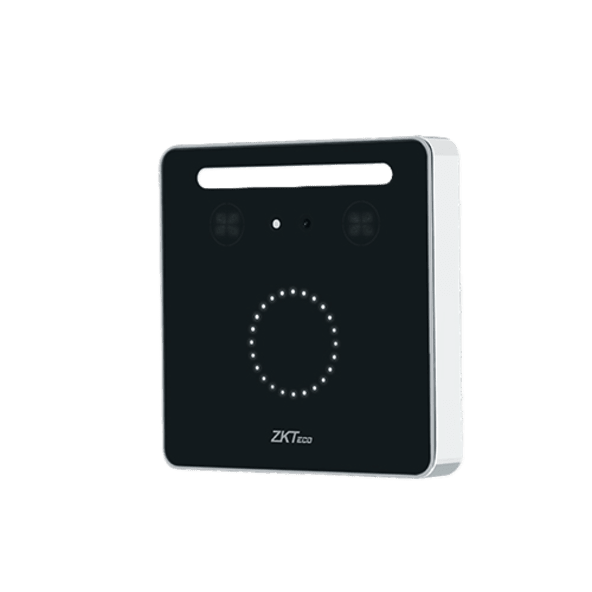

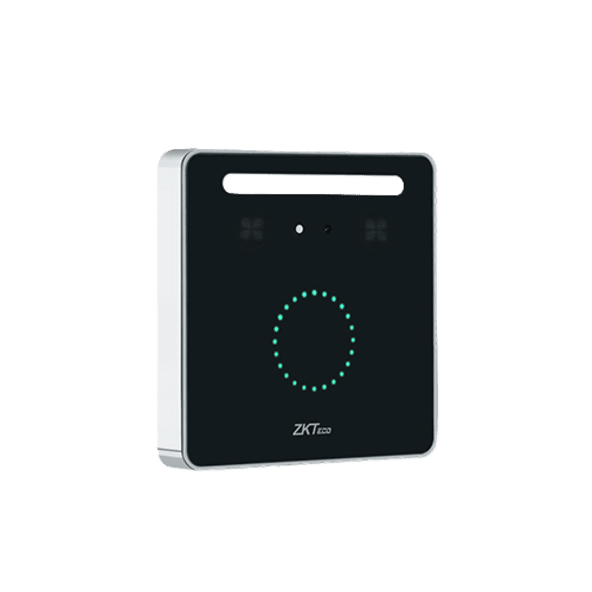

KF1200 Pro
The KF1200 Pro combines advanced visible light facial recognition and RFID technology, offering both biometric reader and standalone access control functionalities. This flexibility makes it an ideal solution for organizations requiring high-security authentication with scalable deployment options. When connected to inBio Pro Plus controllers, the KF1200 Pro processes facial images into optimized templates (512 bytes) and transfers them through RS-485 for secure authentication. Its integrated TCP/IP port enables rapid data synchronization with controllers, ensuring consistent and accurate performance. Deployed as a standalone access control terminal, the KF1200 Pro can be paired with the DM10 door lock extension panel for independent operation. Additionally, it supports ZKBio CVSecurity integration through the ZKTeco A&C PUSH protocol, delivering robust and versatile access control capabilities.
📌 KF1200 Pro – Facial Recognition Terminal
1. Key Features
🟢 Dual Camera @ 2MP for Accurate Facial Recognition
🟢 Linux OS with 1.2GHz Dual Core CPU, 256MB RAM & 512MB ROM
🟢 Touchless Authentication – Face / Card
🟢 Fast Facial Recognition <0.3s
🟢 Recognition Distance: 30cm – 50cm
🟢 Large Capacity with InBio Pro Plus (Face Reader Mode)
🟢 Flexible Communication – RS-485 (Face Reader Mode), TCP/IP, Optional Wi-Fi
🟢 Aluminium Alloy Housing with Wall-Mount Design (Single Gang Box Compatible)
2. Technical Specifications
Model Option:
🟢 KF1200 Pro: Face / Card
Capacity (Default Mode with InBio Pro Plus):
🟢 Face Template Capacity: 3,000
🟢 Card Capacity: 100,000
🟢 User Capacity: 100,000
🟢 Transaction Capacity: 500,000
Standalone Mode (with DM10, Optional):
🟢 Face Template Capacity: 1,500 (1:N)
🟢 Card Capacity: 30,000
🟢 User Capacity: 30,000
🟢 Transaction Capacity: 100,000
Display & Interface:
🟢 Screen: N/A
🟢 Camera: Dual Camera @ 2MP
3. Biometric Performance
🟢 Authentication Speed: < 0.3 seconds (Face)
🟢 Recognition Distance: 30cm – 50cm
🟢 Lighting Environment: ≤ 2,000 lux
🟢 FAR: ≤ 0.01%
🟢 FRR: ≤ 0.02%
🟢 Algorithm: ZKLiveFace 3.5 / 4
4. Functions
Standard Functions:
🟢 Face Reader Mode (with InBio Pro Plus)
🟢 A&C Standalone Mode (with DM10)
🟢 Face Template Mode (Default)
Optional Functions:
🟢 IC Card @ 13.56 MHz
🟢 Wi-Fi (IEEE802.11a/g/n) @ 2.4 GHz
5. Access Control & Communication
🟢 Communication:
• Face Reader Mode – RS-485 *1
• A&C Standalone Mode / Face Template Mode – TCP/IP *1
• Wi-Fi (Optional)
🟢 Access Control Interface: A&C Standalone Mode (with DM10)
6. Power & Environmental Conditions
🟢 Power Supply: DC 12V 3A
🟢 Operating Temperature: -10°C to 50°C
🟢 Operating Humidity: 10% – 90% RH (Non-Condensing)
7. Physical Dimensions & Weight
🟢 Dimensions: 121 × 80 × 13.8 mm (L × W × H)
🟢 Gross Weight: 0.36 kg
🟢 Net Weight: 0.27 kg
🟢 Installation: Wall-Mount (Single Gang Box Compatible)
🟢 Housing Material: Aluminium Alloy
8. Supported Software & Certifications
🟢 Supported Software: ZKBio CVSecurity
🟢 Certifications: ISO14001, ISO9001, CE, FCC, RoHS
Factory ID: KF1200 Pro – AC01-VL07H-P17
Why Choose KF1200 Pro?
✅ Slim & Modern Facial Recognition Device
✅ Fast, Touchless Authentication with Low FAR/FRR
✅ High Capacity & Reliable Performance in Face Reader Mode
✅ Multiple Communication Options including Wi-Fi (Optional)
✅ Sturdy Aluminium Alloy Build with Single Gang Box Mounting
Additional Information:
| Not Available |
