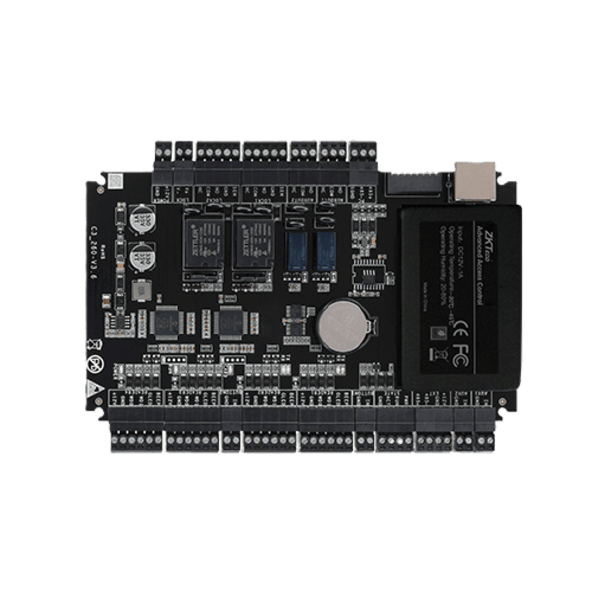

C3-200 Plus
The C3-200 Plus is a powerful dual-door IP-based access control controller offering RFID card and dynamic QR code authentication. Tailored for small to medium-sized businesses, it provides high performance with a storage capacity of 100,000 multi-tech card users and 100,000 dynamic QR code transactions. Equipped with RS-485 interfaces, the C3-200 Plus supports ZKTeco’s RS-485 protocols and OSDP (Ver 2.1.7), ensuring efficient communication with card readers. It also supports ZKTeco’s QR readers (QR50, QR500, QR600) and provides compatibility with third-party devices via the Wiegand interface (W26/W34/W66). Security is reinforced through AES 256-bit data storage encryption, along with AES 128-bit encrypted communication between the controller, readers, and expansion boards. Its HTTPS / TLS 1.2 support further secures data exchange between the web client and the server, making it a reliable solution for modern enterprises.
📌 C3-200 Plus – Access Control Panel
Key Features
🟢 Linux OS with 1.0GHz Single Core CPU
🟢 Authentication Methods: Card / Password / QR Code
🟢 Supports up to 100,000 Users, Cards, QR Codes
🟢 Transaction Storage: 500,000 Records
🟢 Supports Multiple QR Code Types & Dynamic QR Codes via ZKBio CVAccess
🟢 Access Point Capacity: 2 Doors
🟢 Reader Capacity: 4 RS-485 + 4 Wiegand
🟢 IO Expansion: Supports up to 8 EX0808 Boards
🟢 Robust Design with Optional Metal EnclosureTechnical Specifications
Capacity:
🟢 User Capacity: 100,000
🟢 Card Capacity: 100,000 (1:N)
🟢 QR Code Capacity: 100,000
🟢 Transaction Capacity: 500,000
Access Point & Reader Capacity:
🟢 2 Access Points
🟢 4 × RS-485 Readers (ZKTeco RS-485 / OSDP)
🟢 4 × Wiegand Readers (26/34/66 bit)
Inputs & Outputs:
🟢 2 × Exit Buttons
🟢 2 × Door Status
🟢 2 × AUX Inputs (or 64 with expansion)
🟢 2 × Form C Relay for Lock
🟢 2 × Form C Relay for AUX Output (or 64 with expansion)
Communication & Interfaces:
🟢 TCP/IP × 1
🟢 RS-485 × 1 (ZKTeco RS-485 / OSDP)
🟢 Wiegand Input × 4
🟢 USB (Type A, USB Drive Only) × 1
🟢 AUX Inputs × 2
🟢 AUX Outputs × 2
🟢 Electric Lock × 2
🟢 Door Sensor × 2
🟢 Exit Button × 2
🟢 Alarm × 2
Functions
Standard Functions:
🟢 Webserver
🟢 Up to 14-digit User ID
🟢 Access Levels, Access Groups, Holidays
🟢 Anti-passback, Anti-tailgating
🟢 Linkage & Global Linkage
🟢 Multiple Verification MethodsPower & Environment
🟢 Power Supply: 9.6V – 14.4V DC
🟢 Operating Temperature: 0°C to 45°C
🟢 Operating Humidity: 20% – 80% RH (Non-condensing)Physical Dimensions & Weight
🟢 Dimensions: 175 × 99 × 19.3 mm (L × W × H)
🟢 Gross Weight: 0.296 kg
🟢 Net Weight: 0.190 kg
🟢 Optional Metal Enclosure: 350 × 90 × 300 mm, SPCC Steel, PSU 12V 4A+1A DC, Space for Backup BatterySupported Software & Certifications
🟢 Supported Software: ZKBio CVAccess
🟢 Certifications: ISO14001, ISO9001, CE, FCC, RoHS
🟢 Factory ID: AC02-C12H-U10
Why Choose C3-200 Plus?
✅ Reliable access control solution for small-to-medium enterprises
✅ Supports 2 Doors with multiple authentication methods
✅ Large User and Transaction Capacity
✅ Flexible Expansion with EX0808 Boards
✅ Optional Metal Enclosure for extra protection
Additional Information:
| Not Available |
