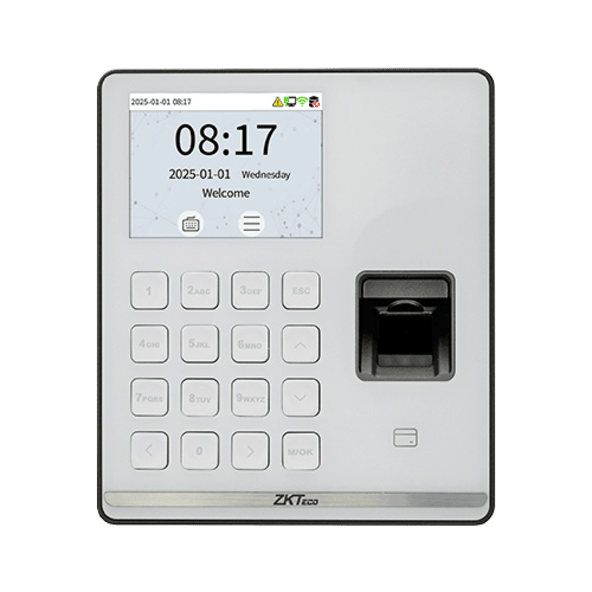

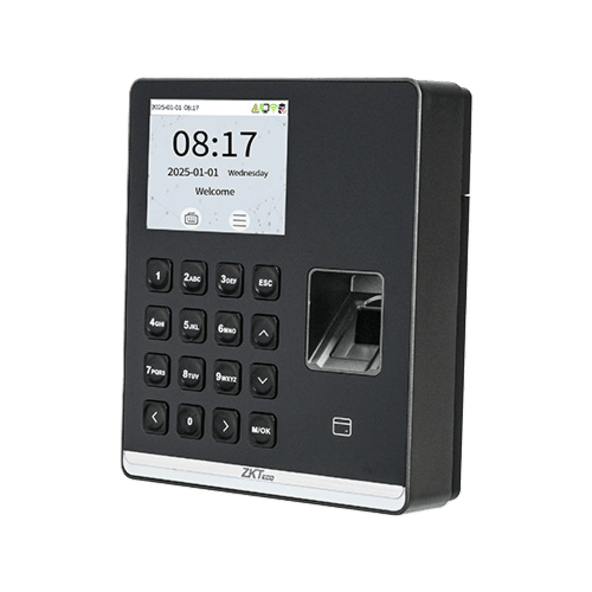

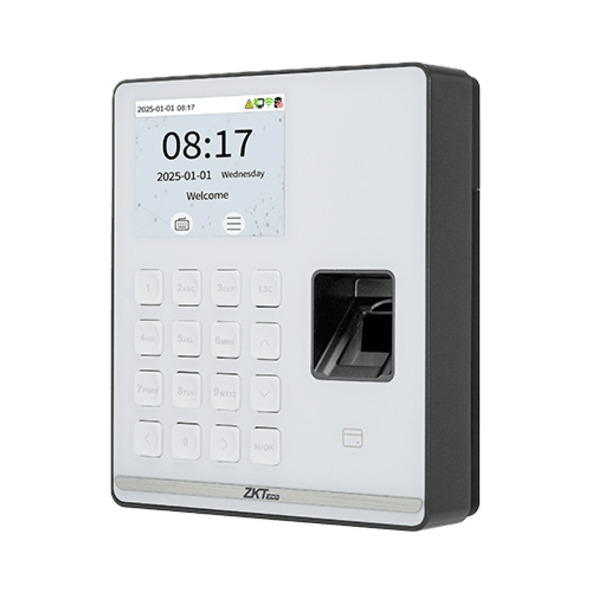

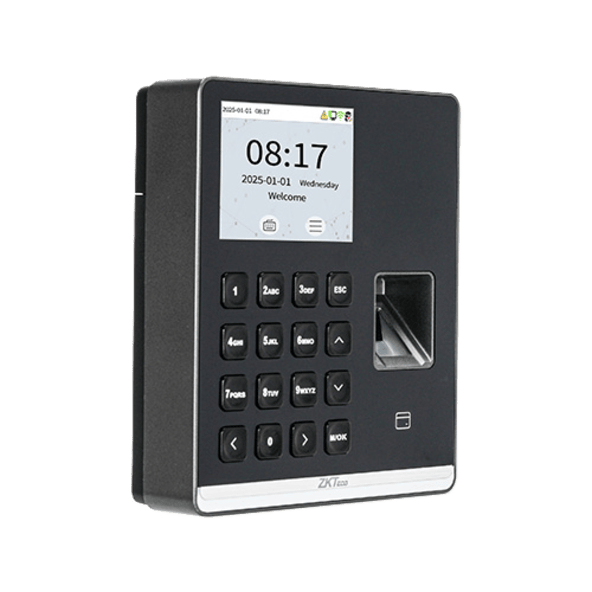

SenseFP M1
SenseFP M1 is a time and attendance terminal which simplifies attendance solutions It is aimed at small and medium-sized businesses (SMEs) that want to manage their workforce reliably and affordably. SenseFP M1 offers flexible authentication options, such as fingerprint authentication, RFID card verification and password entry to suit different workplace preferences. The terminal adopts the ZK optical fingerprint algorithm, enabling fast fingerprint authentication less than 1.5 seconds. What makes SenseFP M1 stands out is that the terminal can connect to Wi-Fi and integrate with ZKBio Zlink. This lets users manage employees and equipment, set attendance rules and check real-time attendance reports on their desktop or mobile device.
📌 SenseFP M1 – Fingerprint Time & Attendance Terminal
1. Key Features
🟢 2.8” TFT Color LCD Screen – Clear interface with 320×240 resolution
🟢 Multi-Modal Authentication – Fingerprint, Card, and Password via physical keypad
🟢 Fast & Accurate Verification – Fingerprint <1.5s
🟢 Capacity – Supports up to 500 users
🟢 Flexible Card Options – ID Card (125 kHz) Standard / IC Card (13.56 MHz) Optional
🟢 Standard Functions – DST, Automatic Status Switch, T9 Keyboard, Online Firmware Upgrade
🟢 Compact & Lightweight Wall-Mount Design – Compatible with Asian Gang Box / Single Gang Box
2. Technical Specifications
Model Option:
🟢 SenseFP M1: Fingerprint / Card / Password
Capacity:
🟢 Fingerprint Capacity: 500 (1:N)
🟢 Card Capacity: 500 (1:N)
🟢 User Capacity: 500 (1:N)
🟢 Transaction Capacity: 100,000 (1:N)
🟢 Max. User Password Length: 6 Digits
Display & Interface:
🟢 Screen: 2.8” TFT Color LCD (320×240)
🟢 Keypad: 16 Physical Keys
Camera:
🟢 N/A
3. Biometric Performance
🟢 Authentication Speed: Fingerprint < 1.5 seconds
🟢 FAR: < 0.0001% (Fingerprint)
🟢 FRR: < 0.1% (Fingerprint)
🟢 Algorithm: ZKFingerprint V13.0
4. Functions
Standard Functions:
🟢 DST
🟢 Up to 14-digit User ID
🟢 Record Query
🟢 Automatic Status Switch
🟢 Multiple Authentication Methods
🟢 T9 Keyboard Input (Virtual)
🟢 Online Firmware Upgrade
Optional Functions:
🟢 IC Card
5. Power & Environmental Conditions
🟢 Power Supply: DC 5V 2A
🟢 Operating Temperature: 0°C to 45°C
🟢 Operating Humidity: 20% – 80% RH (Non-Condensing)
6. Physical Dimensions & Weight
🟢 Dimensions: 135.5 × 118.23 × 35.95 mm (L × W × H)
🟢 Gross Weight: 0.245 kg
🟢 Installation: Wall-Mount (Asian Gang Box / Single Gang Box Compatible)
7. Supported Software & Certifications
🟢 Mobile App: ZKBio Zlink
🟢 Cloud-Based: ZKBio Zlink
🟢 Certifications: ISO14001, ISO9001, CE, FCC, RoHS
Why Choose SenseFP M1?
✅ Compact, lightweight, and cost-effective solution for SMEs
✅ Supports Fingerprint, Card, and Password Authentication
✅ Reliable Biometric Algorithm with Fast Verification
✅ Easy Installation & Online Firmware Upgrade
✅ Affordable Entry-Level Biometric Time & Attendance Terminal
